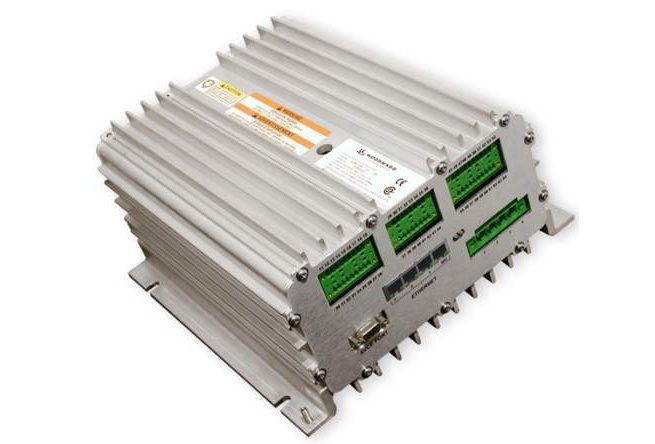

The Woodward DVP (Digital Valve Positioner) is the state-of-the-art driver for electric actuation of Woodward valves and actuators. Featuring plug-and-play auto-detection via ID modules built into newer valves, the DVP automatically reads critical valve-specific information for rapid setup. It supports redundant installations and accepts multiple input types for compatibility with a wide range of turbine controllers.
Key Features
Control
- State-of-the-art digital driver for electric actuation
- Controls limited angle torque (LAT) and brushless DC (BLDC) motors
- Resolver-based position feedback from valve or actuator
- High-speed, precise valve positioning
- Plug-and-play with Woodward ID module-equipped valves
- Auto-detection reads critical valve-specific setup data
Configuration & Models
- IP30 or IP56 ingress protection models
- Connector or terminal block outputs; conduit option on IP56
- 125 Vdc or 24 Vdc power input options
- EGD (Ethernet), CANopen, Analog (4–20 mA or 0–5 Vdc), PWM inputs
- Pre-manufactured connectorized cables or terminal connection models
- Supports redundant installations
Applications
- Gas turbine fuel valve actuation
- Steam turbine valve positioning
- Woodward GS, LQ, SonicFlo, and 3103 valve families
- EM-series and other Woodward actuators
- Redundant valve control systems
Drake Controls Services
Drake Controls is a Woodward Authorized Distributor. We stock DVP units in multiple configurations and provide repair, overhaul, and field support. For repair or overhaul, submit a repair request or email service@drakecontrols.com.
