The Peak200 is Woodward’s cost-effective digital control for small single valve or single valve-rack industrial steam turbines. It replaces the retired Peak 150 as a direct form-fit-function upgrade.
Designed to start, stop, control, and protect steam turbines or turbo-expanders driving compressors, pumps, or industrial fans. The integrated 5″ graphical operator panel serves as both a programming station and operator interface, with password-protected configuration access.
The Peak200 includes Woodward’s patented adaptive PID controller for automatic calculation of optimum dynamic gains. Its PID-to-PID logic enables stable control and bumpless mode transfers during plant upsets, minimizing overshoot and undershoot.
Applications
- Turbine speed and load control
- Inlet header pressure control
- Turbine inlet/exhaust header pressure control
- Pump flow/pressure control
- Compressor flow/pressure control
- Overspeed protection and trip
- Bearing temperature monitoring, alarms, and trips
- Vibration monitoring, alarms, and trips
Key Features
Control
- Dual dynamics (Speed PID)
- Adaptive speed/load PID dynamics
- Cascade PID (turbine/driven equipment)
- Manual or auto start sequence
- First-out indication (alarms and shutdowns)
- Multi-lingual display
- Remote analog setpoints for speed/load and cascade
System Protection
- Overspeed protection logic and test capability
- Critical speed band protection (1 band)
- First-out indication (5 individual shutdown inputs)
- Bearing temperature alarm and trip settings
- Vibration alarm and trip settings
- CPU and memory failure detection logic
- Mode login level password security
Specifications
Inputs
- Power: LV 18–36Vdc / HV 88–264Vac & 90–150Vdc (45W max)
- Speed: 2 passive MPUs (100–35,000 Hz)
- Analog: 4 configurable 4-20mA inputs (optionally 16 more via LinkNet-HT)
- RTD: 8 RTD signals (optionally 8 more via LinkNet-HT)
- Discrete: 8 configurable contact inputs (optionally 16 more via LinkNet-HT)
Outputs
- Valve/Actuator: 1 actuator output, 4-20mA and 20-200mA
- Discrete: 4 relay outputs 24Vdc @ 2A (optionally 16 more via LinkNet-HT)
- Analog: 3 configurable 4-20mA outputs (optionally 2 more via LinkNet-HT)
Communications
- Ethernet: 2 ports (Modbus TCP or UDP)
- Serial: 1 Modbus port (ASCII or RTU), RS-232 or RS-485
- CAN: 2 ports (LinkNet-HT communication protocol)
Environment
- Temperature: -20 to +65°C (-20 to +70°C panel mount)
- Enclosure: NEMA 4X, IP56 rated
- Hazardous area: CSA Class I, Div. 2, Groups A, B, C, D
- Coating: Sulfur-resistant conformal coating
- Mounting: Bulkhead and front panel mount versions
Accessories
- LinkNet-HT Modules: Distributed I/O modules to extend the Peak200’s input and output channels
- Vibration Sensor Kit: 4-20mA accelerometer sensors for vibration monitoring, alarm, and trip
- RemoteView: Woodward’s software for remote operator control and engineering station via computer or touch panel
- Stored Trend/Log File Service Tool: View real-time trends, upload/download configurations and alarm/trip logs
Peak 150 Upgrade Path
The Peak200 is a direct form-fit-function replacement for the retired Peak 150. Existing Peak 150 installations can be upgraded with minimal downtime. As a Woodward Recognized Turbine Retrofitter, Drake Controls provides complete retrofit packages including engineering, installation, and commissioning. Contact us to discuss your upgrade.

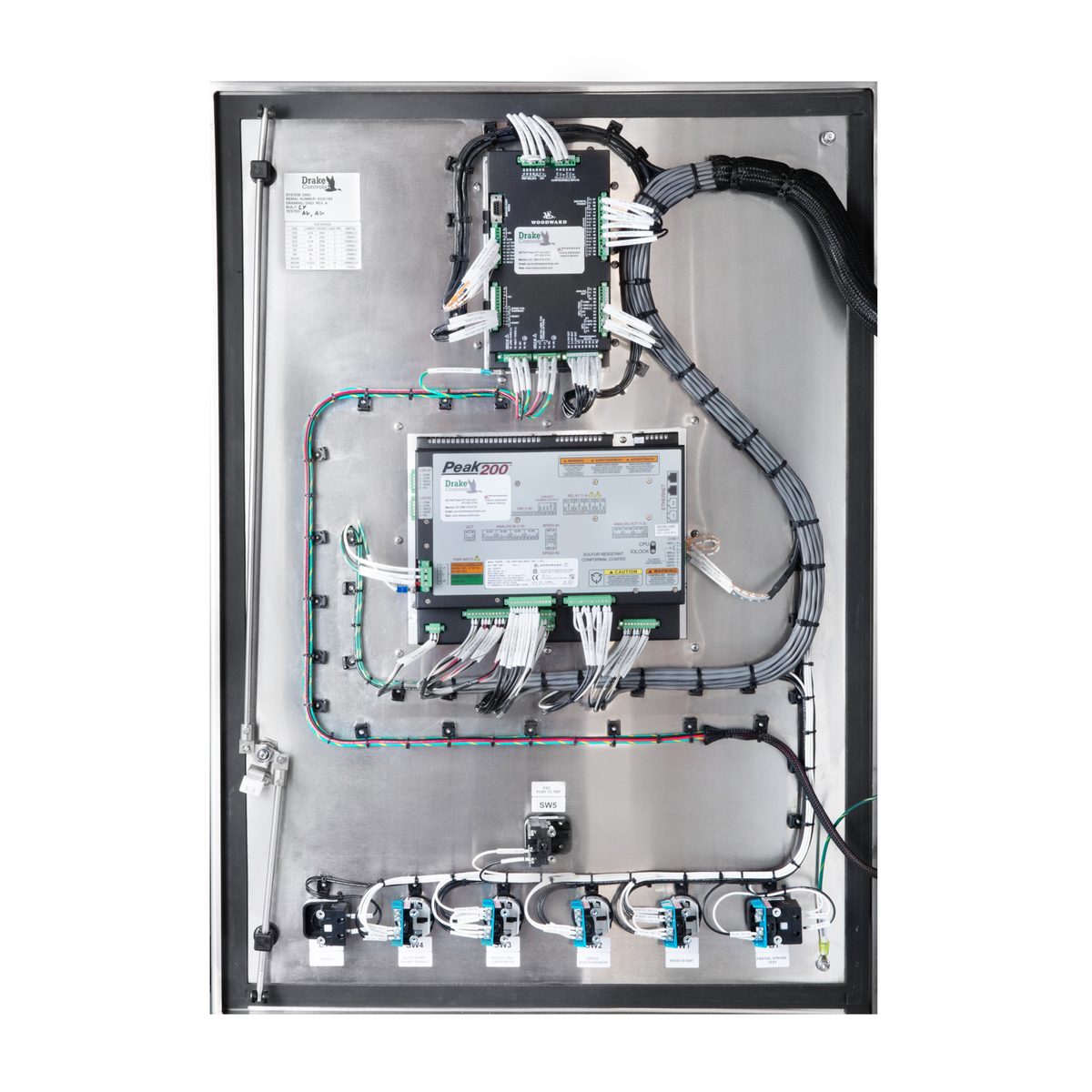

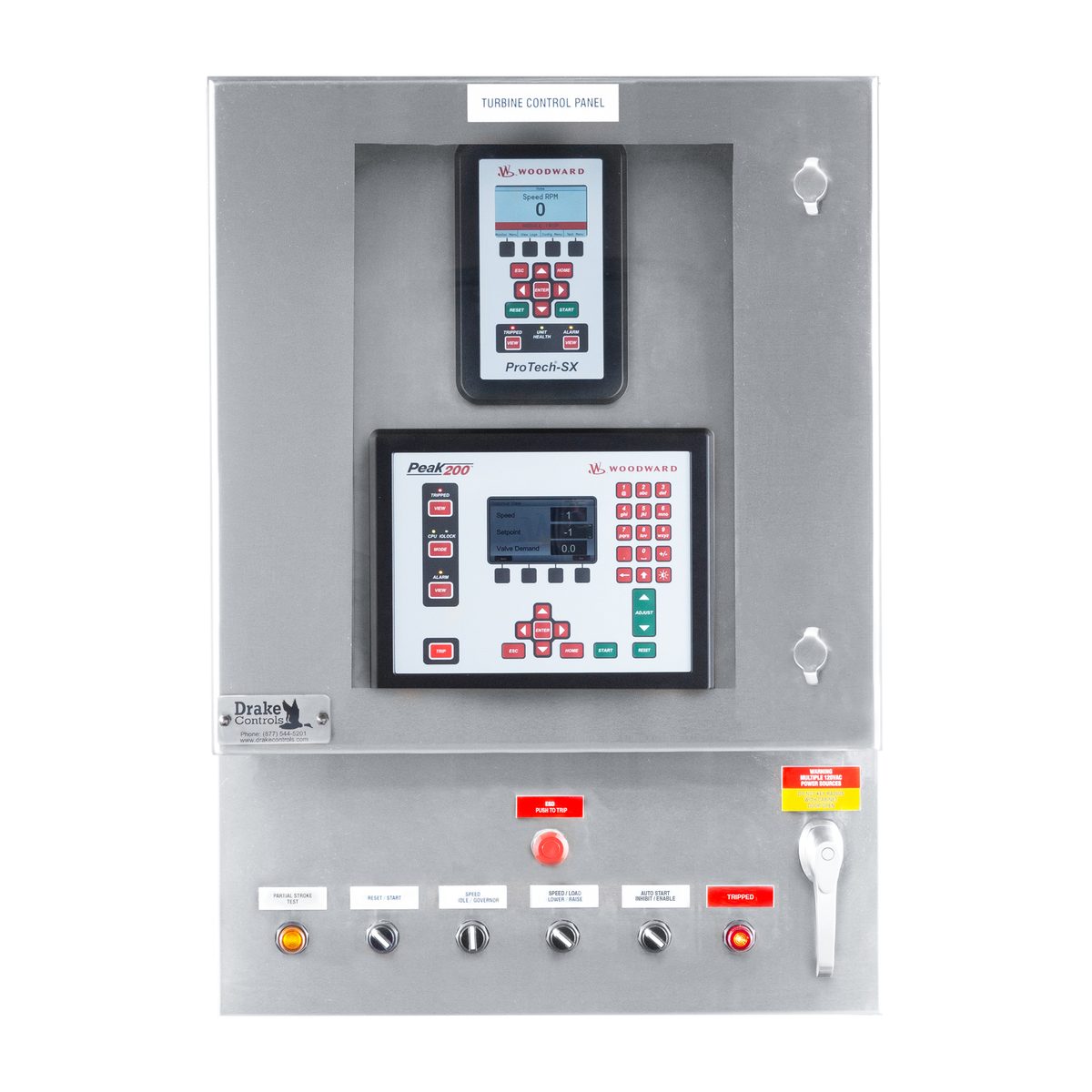

Drake-Built Peak 200 Control Panels
To order, request a quote, or discuss a retrofit for your Peak200 or Peak 150 upgrade, contact sales@drakecontrols.com or call +1-877-544-5201.
Reference: Woodward Product Specification 03438, Revision D, 8/2023
