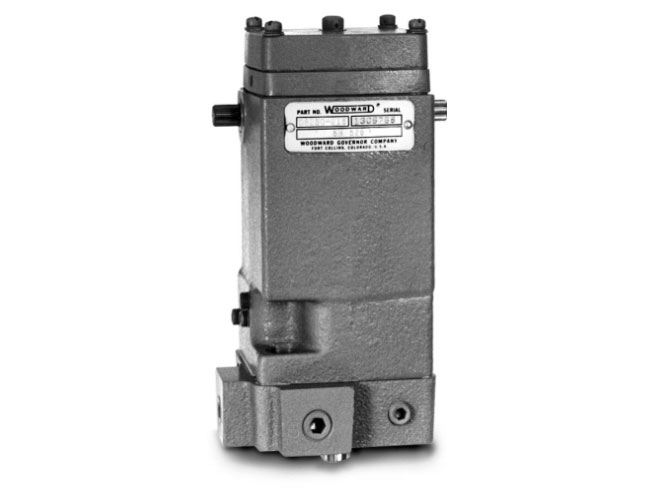

The Woodward EG-3P, EG-6P, and EG-10P are proportional actuators designed for diesel, gas, and gasoline engines or turbines. They convert an electrical signal to a proportional rotary output shaft position to control fuel flow or energy medium, making them ideal for control systems requiring a proportional mechanical output from a proportional electrical input.
Key Features
Actuator
- Proportional electrical-to-mechanical conversion
- DC control signal input (minimum to maximum range)
- Proportional rotary output shaft position
- Available in three sizes: EG-3P, EG-6P, EG-10P
- Compatible with Woodward hydraulic amplifier for larger work capacities
Integration
- Designed for Woodward 2301A, 723, 723PLUS, and similar integrating controls
- Controls fuel racks, fuel valves, or steam valves
- Suitable for engines and turbines driving alternators, generators, pumps, compressors
- Locomotive and papermaking machine applications
- Proven reliability across diverse industrial applications
Applications
- Diesel, gas, and gasoline engine fuel control
- Steam and industrial gas turbine fuel valve positioning
- Alternator and DC generator drive applications
- Pump and compressor drive applications
- Locomotive and industrial machinery
Drake Controls Services
Drake Controls is a Woodward Authorized Distributor. We stock EG-3P/6P/10P actuators and provide repair, overhaul, and field support. For repair or overhaul, submit a repair request or email service@drakecontrols.com.
