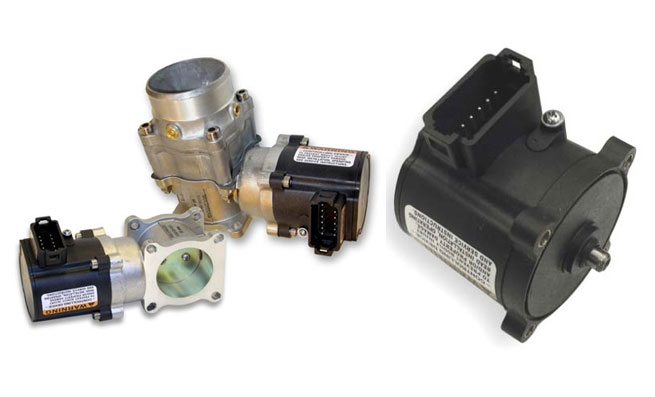

The Woodward L-Series Position Controller is a microprocessor-based bi-directional actuator that provides a building-block approach to total engine management. It accepts PWM, 0–5 V, or CAN position commands and drives a 0–60 degree output shaft with a high-efficiency torque motor. Available in multiple mounting configurations including integration with fuel pumps, throttle bodies, and mixers.
Key Features
Actuator
- Bi-directional electric actuator with 0–60 degree output shaft
- High-efficiency torque motor: 0.34 N·m (0.25 lb-ft) nominal
- Internal shaft position sensor
- Configurable CW or CCW shaft rotation for increasing fuel
- Relay driver fault/error output
- TPS (throttle position) DC voltage output for external position indication
Configuration & Installation
- Accepts PWM, 0–5 V, or CAN position command
- Software setup for application-specific signal type
- Bracket mount with external linkage
- Integrated with diesel fuel pumps, throttle bodies, and mixers
- Optional mounting kits for Stanadyne DB-series or Delphi fuel injection pumps
- Companion versions available for speed control and A/F ratio control
Applications
- Engine fuel rack positioning
- Throttle body and mixer positioning
- Waste-gate and bypass valve control
- Building block for total engine management systems
- Diesel and gaseous fuel engine applications
Drake Controls Services
Drake Controls is a Woodward Authorized Distributor. We supply L-Series Position Controllers in all mechanical configurations and provide application support, configuration, and repair.
