The Woodward LS-5 Series are synchronizer and circuit-breaker controls with integrated mains decoupling and protection. Paired with easYgen-3400XT/3500XT genset controllers over a single CAN bus, they manage synchronization, load sharing, and breaker control across multiple mains feeders, bus-tie, and group breakers, and can also run stand-alone as a synch-check relay. The current generation is the Ethernet-capable LS-6XT, described below.
Key Features
Synchronizing & Protection
- Phase-match or slip-frequency synchronization with voltage matching
- Full protection package including df/dt (ROCOF), phase shift, and mains voltage protection per grid-code requirements (VDE-0126-1-1)
- Mains decoupling with test mode
- Breaker open/close failure detection
- Transformer vector-group adjustment when transformers are in the application
Control & Integration
- Up to 16 LS-5 units in one network with up to 32 easYgen-3400/3500 controllers
- Segment control for load sharing
- Preconfigured application modes (MCB or MCB/GGB)
- Stand-alone mode without the easYgen
- Full remote control via CAN or RS-485, with an event log up to 300 entries and automatic time sync

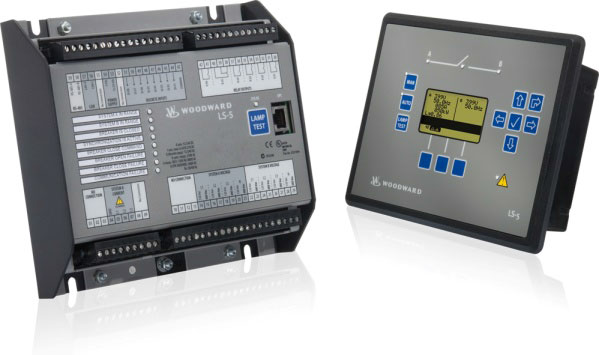

- Two housings: LS-521 (front-door, graphic LCD) and LS-511 (back-panel, no display, 8 configurable LEDs)
Current Generation: LS-6XT
The LS-6XT (P/N 8440-2222) is Woodward’s latest smart breaker control, evolving the LS-4, LS-5, and LS-5V2 line. It adds redundant CAN-plus-Ethernet and Ethernet-plus-Ethernet communication, enhanced LogicsManager with AnalogManager, easYlite-200 remote annunciator support, and configuration over standard USB or Ethernet without a DPC cable. A single LS-6XT controls up to 64 breakers stand-alone and scales to large multi-bus systems with the GC-3000XT group controller and easYgen-3400XT/3500XT controllers. LS-6XT requires easYgen-3000XT firmware revision 2.10.x or later. Drake supports both LS-5 and LS-5V2 service and LS-6XT upgrades.
Applications
- Power management with multiple utility feeds, bus-tie, and group breakers
- Main-tie-main switchgear using multiple LS-5 or LS-6XT units
- Mains decoupling and grid-code compliance
- Stand-alone synch-check relay
- OEM switchgear and generator packaging
Drake Controls Services
Drake Controls is a Woodward Authorized Distributor. We stock LS-5 and LS-6XT breaker controls and easYgen genset controllers, and our field service team handles power-management system design, configuration, installation, and commissioning, including LS-5 to LS-6XT upgrades.
